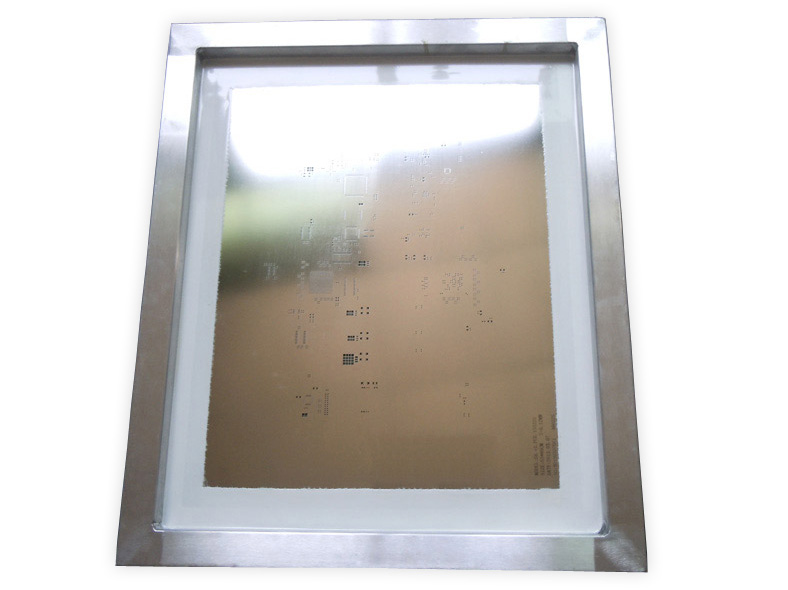

Also known as glue-in stencils, these laser-cut stencils are permanently mounted into a frame made of mesh borders. These borders allow the foil to be tightly stretched taunt in the frame. We recommend this stencil for high volume production.
For stencil with frame, we have standard size according to your PCB outline.
If you do not find the size you want,pls email us. We will provide the exact solution for all of your needs.
SMT stencil is used to transfer solder paste to a bare printed circuit board. A stainless steel foil is laser cut creating an opening for every surface mount device on the board. Once the stencil is properly aligned on top of the PCB board, solder paste is applied over the openings (making a single pass, using a metal squeegee blade). When the stainless steel foil is separated from the board, solder paste will remain, ready for placement of the SMD. This process, as opposed to hand soldering methods, ensures consistency and saves time.
From Crown Key Electronics, you can order a stencil with any PCB together. Simply to write the size of the stencil you need, or let our engineer to suitable size according to your PCB design. There is some sizes and valid area of PCB stencil from Crown Key. See the below list for more details on the standard size stencils. If any special size or requirements, pls contact our sales by email.
Standard Size with frame:
30x40 CM,
37x47 CM
42x52 CM
45x55CM
58.4x58.4cm
40.0x60.0cm,
55.0x65.0cm
73.6x73.6cm
40.0x80.0cm
40.0x100.0cm
28.0x38.0cm
50.0x80.0cm
